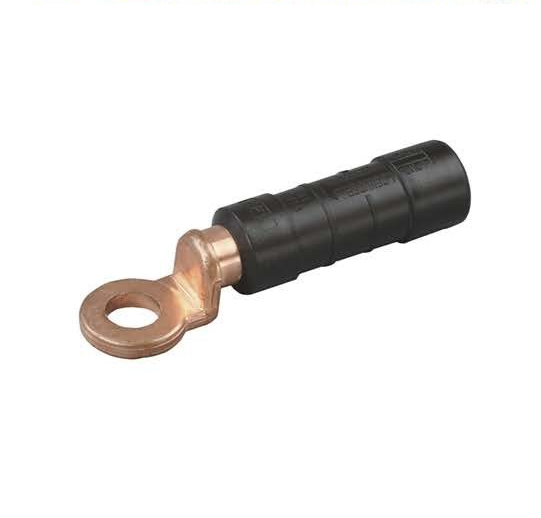

CBL-4 Per Insulated Copper Terminals

Product Specifications

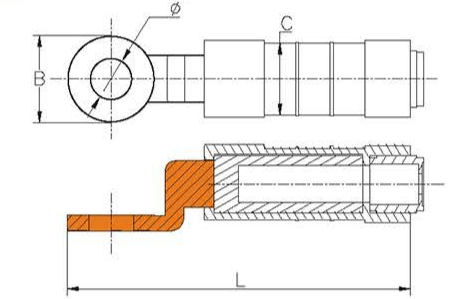

Item No. Ø C B L Color Code Package (pcs) Gross Weight (kg)
CBL-4-16-10 10.5 16 20 75 Blue 200 8
CBL-4-25-12 13 16 24 100 Orange 200 16
CBL-4-35-12 13 20 24 100 Red 200 15.5
CBL-4-50-12 13 20 24 100 Yellow 200 15.5
CBL-4-54.6-12 13 20 24 100 Black 200 14
CBL-4-70-12 13 20 24 100 White 200 14.5
CBL-4-95-12 13 20 24 100 Grey 200 14
CBL-4-120-12 13 25/28 30 118 Pink 200 15
CBL-4-150-12 13 25/28 30 118 Violet 200 15

Product Description

The CBL-4 Pre-insulated Copper-Aluminum Terminal establishes ultra-reliable low-voltage connections for ABC cables with dual-material engineering—99.9% pure copper palm and 99.6% aluminum sleeve—featuring color-coded elastomer rings for instant conductor sizing (10-300mm²) and UV-resistant polymer insulation validated by EN50483-4/NFC33-021 standards. Its pre-lubricated waterproof seal withstands 1-minute submersion tests at 6kV, ideal for coastal smart grid distribution cabinets and urban underground cable networks where moisture intrusion risks prevail. The integrated weatherproof design combines anti-corrosion aluminum alloy with thermal-stable insulation (-40°C~90°C), reducing installation errors by 50% through visual size identification while serving offshore wind farm switchgear and IoT-enabled street lighting systems.
