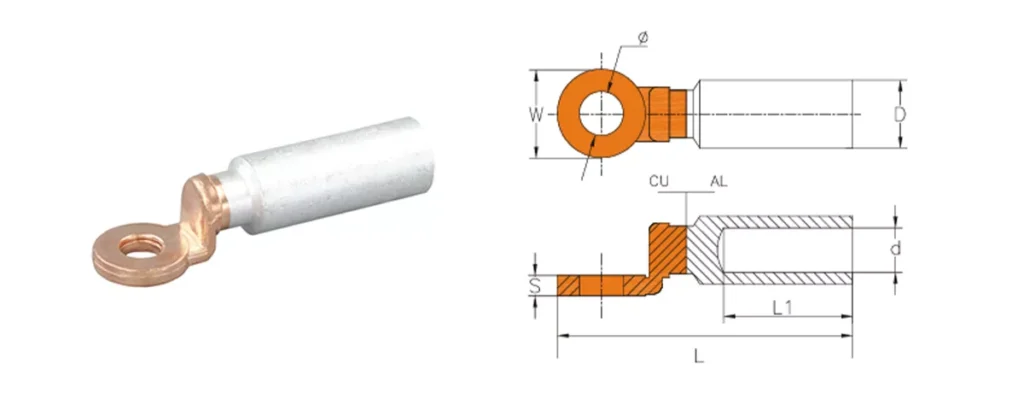

+91 93222 28196CBL-5 Bimetal Crimp Cable Lug
| Item No. | Ø+0.3 | D+0.2 | D+0.2 | L+2 | L1+2 | W+0.2 | S+0.2 | Package (pcs) | Gross Weight (kg) |
| CBL-5-16 | 10.5 | 16 | 5.5 | 80 | 40 | 20 | 4.0 | 480 | 22 |
| CBL-5-25 | 10.5 | 16 | 7.0 | 80 | 40 | 20 | 4.0 | 480 | 22 |
| CBL-5-35 | 10.5 | 16 | 8.2 | 80 | 40 | 20 | 4.0 | 480 | 22 |
| CBL-5-50 | 12.8 | 20 | 9.2 | 90 | 43 | 25 | 5.5 | 300 | 23 |
| CBL-5-70 | 12.8 | 20 | 11.2 | 90 | 43 | 25 | 5.5 | 300 | 23 |
| CBL-5-95 | 12.8 | 20 | 12.5 | 90 | 43 | 25 | 5.5 | 300 | 23 |
| CBL-5-120 | 12.8 | 25 | 14.0 | 112 | 58 | 30 | 6.5 | 180 | 26 |
| CBL-5-150 | 12.8 | 25 | 16.5 | 112 | 58 | 30 | 6.5 | 180 | 26 |
| CBL-5-185 | 12.8 | 32 | 18.5 | 122 | 60 | 35 | 7.0 | 90 | 23 |
| CBL-5-240 | 12.8 | 32 | 20.0 | 122 | 60 | 35 | 7.0 | 90 | 23 |
| CBL-5-300 | 12.8 | 34 | 23.5 | 125 | 65 | 35 | 7.0 | 90 | 25 |
| CBL-5-400 | 17.0 | 40 | 26.0 | 160 | 90 | 36 | 7.0 | 54 | 21 |
| CBL-5-500 | 17.0 | 40 | 29.5 | 160 | 90 | 36 | 7.0 | 54 | 21 |
- Suitable for connecting ABC cables to transformers, switchgear etc. on the pole top
- Friction welded
- Aluminum barrel is filled by neutral grease and covered by cap
- Material:CU≥99.9%,AL≥99.5%
