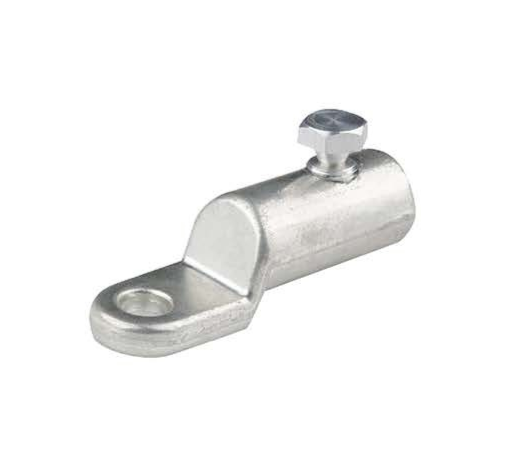

+91 93222 28196CBL Aluminum Bolted Lug
Product Specifications

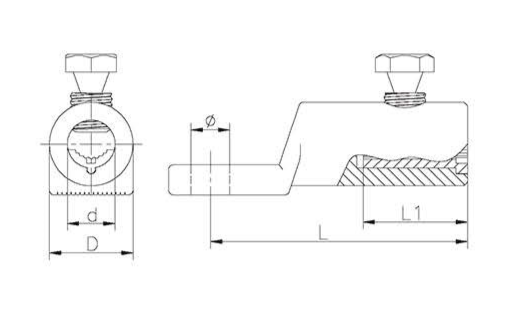

| Item No. | Cross Section (mm² ) | Ø+0.3 | D+0.2 | d+0.2 | L+2 | L1+2 | No. Of Bolt |
| CBL-25/95 | 25-95 | Ø13, Ø17 | 24 | 12.8 | 60 | 30 | 1 |
| CBL-35/150 | 35-150 | Ø13, Ø17 | 28 | 15.8 | 86 | 35 | 1 |
| CBL-95/240 | 95-240 | Ø13, Ø17, Ø21 | 33 | 20.0 | 112 | 60 | 2 |
| CBL-120/300 | 120-300 | Ø13, Ø17 | 37 | 24.0 | 115 | 65 | 2 |
Product Description
- Mechanical Lug,Noneeds of crimping tools and the attendantoperator skill.
- Only a socketspanner or awrench is needed.
- Torque controlled sheared off bolts guarantee a goodelectrical contact.
- Wide application Range.
- The solid palm eliminates the ingressof moisture.
- Prefiled with jointing compound.
- Material:A≥99.5%
- Surface:Electro tinplated
