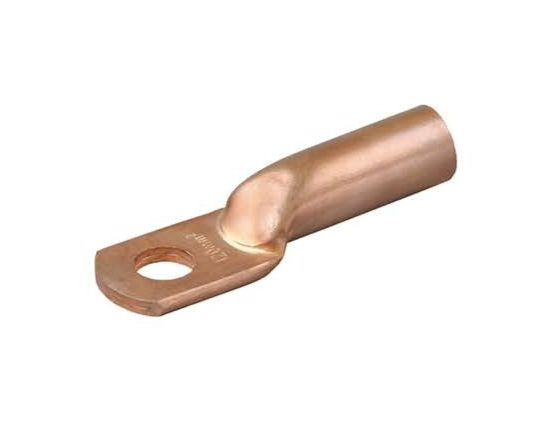

+91 93222 28196CBL-G Copper Crimp Terminal Lug
Product Specifications

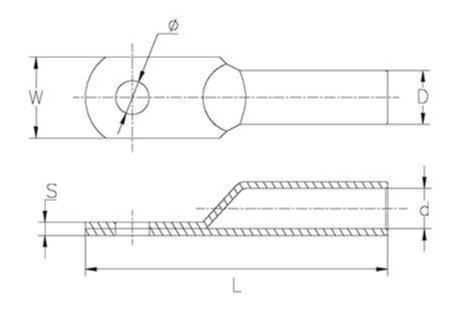

| Item No. | Ø+0.5 | D+0.5 | d+0.5 | L+2 | W+0.5 | S+0.5 | Package (pcs) | Gross Weight (kg) |
| CBL-G-10 | 8.5 | 8.0 | 5.4 | 51 | 12.4 | 2.2 | 1800 | 19.0 |
| CBL-G-16 | 8.5 | 8.8 | 6.0 | 56 | 12.4 | 2.7 | 1200 | 19.0 |
| CBL-G-25 | 8.5 | 10.0 | 7.1 | 61 | 14.3 | 2.8 | 960 | 18.5 |
| CBL-G-35 | 10.5 | 11.0 | 8.2 | 66 | 15.8 | 2.8 | 720 | 18.5 |
| CBL-G-50 | 10.5 | 13.0 | 10.1 | 71 | 18.9 | 3.0 | 600 | 19.0 |
| CBL-G-70 | 12.5 | 16.0 | 12.1 | 80 | 23.0 | 3.9 | 420 | 24.0 |
| CBL-G-95 | 12.5 | 18.0 | 14.0 | 86 | 26.0 | 4.0 | 300 | 22.9 |
| CBL-G-120 | 14.5 | 20.0 | 15.7 | 95 | 28.7 | 4.4 | 240 | 26.5 |
| CBL-G-150 | 14.5 | 22.0 | 17.4 | 101 | 32.0 | 4.7 | 240 | 31.0 |
| CBL-G-185 | 16.5 | 25.0 | 19.2 | 112 | 36.0 | 5.8 | 180 | 33.4 |
| CBL-G-240 | 16.5 | 27.0 | 21.0 | 118 | 38.7 | 6.0 | 120 | 26.5 |
| CBL-G-300 | 16.5 | 30.0 | 24.1 | 134 | 43.5 | 6.0 | 96 | 30.0 |
| CBL-G-400 | 18.5 | 33.0 | 26.0 | 153 | 47.5 | 7.0 | 96 | 31.0 |
| CBL-G-500 | 20.5 | 40.0 | 31.7 | 170 | 58.0 | 8.5 | 72 | 32.0 |
| CBL-G-630 | 20.5 | 45.0 | 36.0 | 210 | 65.0 | 9.2 | 72 | 32.5 |
Product Description
- Have a viewingwindow to checkthe location ofthe conductor
- Material:CU≥99.9%
- Cable Area is identified clearly on the lug
- Application: low voltage
