+91 93222 28196CBL-Pre Insulated Aluminum Connecting Pipe
Product Specifications

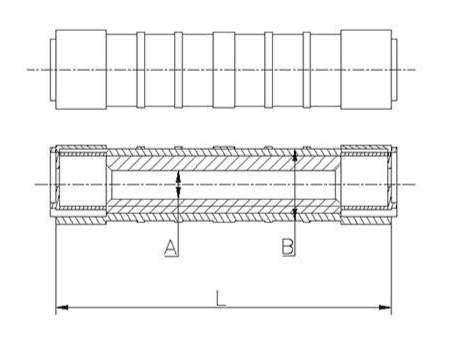

| Item No. | Cable Size(mm²) A | Plastic Sleeve Diameter(mm) B | Length L | Package (pcs) | Gross Weight (kg) |
| CBL 16/16 | 16 | 16 | 70.5 | 200 | 5.5 |
| CBL 25/25 | 25 | 16 | 70.5 | 200 | 7.5 |
| CBL 35/35 | 35 | 20 | 98.5 | 200 | 12 |
| CBL 50/50 | 50 | 20 | 98.5 | 200 | 12 |
| CBL 70/70 | 70 | 20 | 98.5 | 200 | 10 |
| CBL 95/95 | 95 | 20 | 98.5 | 200 | 10 |
Product Description

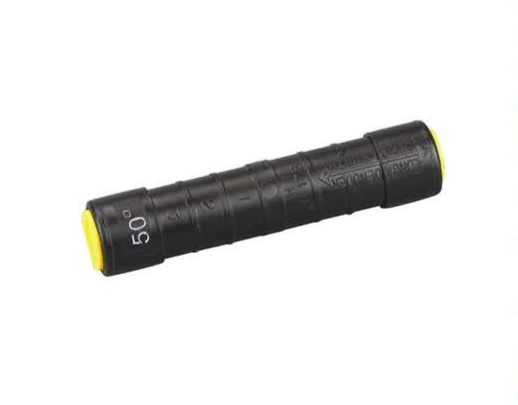

- The CBL pre-insulated connector is designed for service and lighting cables.
- Cross-section of conductor can be easily identified by the color code of rings
- Elastomeric ring and pre-Filled grease enable super waterproof performance
- Water tightness test carried out at6kV for 1minute under water
- Insulation tube is made of weather and UV resistant polymer
- Standard: EN 50483-4,NFC 33-021
