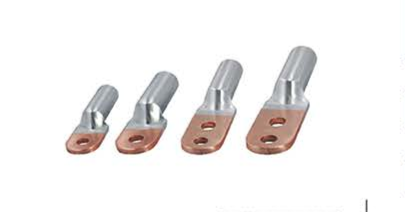

+91 93222 28196CBL-S Copper Aluminum Terminal (Double Pass)

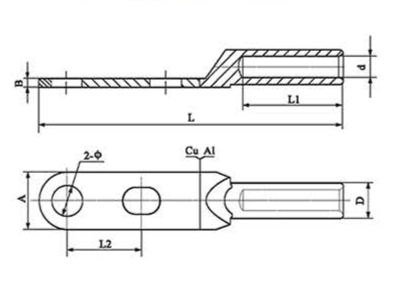

| Item No. | A | B | D | d | L | L1 | L2 | Ø |
| CBL-16S | 18 | 3 | 10 | 5.5 | 93 | 32 | 20 | 8.5 |
| CBL-25S | 18 | 3.2 | 12 | 7 | 95 | 34 | 20 | 8.5 |
| CBL-35S | 23 | 3.6 | 14 | 8.5 | 104 | 40 | 20 | 8.5 |
| CBL-50S | 23 | 4 | 16 | 9.5 | 108 | 42 | 20 | 8.5 |
| CBL-70S | 23 | 4.6 | 18 | 12 | 128 | 47 | 25 | 10.5 |
| CBL-95S | 28 | 4.8 | 21 | 13 | 136 | 50 | 25 | 10.5 |
| CBL-120S | 34 | 5.4 | 23 | 15 | 152 | 53 | 30 | 12.5 |
| CBL-150S | 34 | 5.8 | 25 | 16 | 156 | 55 | 30 | 12.5 |
| CBL-185S | 38 | 6.7 | 27 | 18 | 170 | 58 | 35 | 14.5 |
| CBL-240S | 38 | 7 | 30 | 20 | 175 | 60 | 35 | 14.5 |
| CBL-300S | 50 | 9 | 34 | 23 | 205 | 65 | 40 | 17 |
| CBL-400S | 50 | 9.5 | 38 | 26 | 210 | 70 | 40 | 17 |
| CBL-500S | 60 | 10 | 42 | 29 | 230 | 75 | 40 | 17 |
- High Temperature Resistance
- CBL-S Terminal Round Shape Lug
- Filled by Neutralgrease and Covered by Cap
- Conduct Electricity, Connecting ABC Cablesto Transformers,
- Inner Box+ Carton, According to Different Size
- Material: CU 99. %, AL 99.5%
