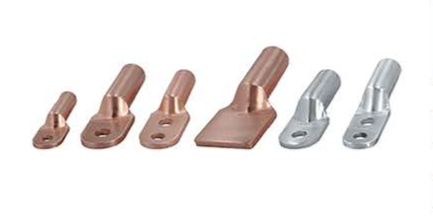

+91 93222 28196CBL-S Series Of Copper Connecting Terminals (Double Pass)

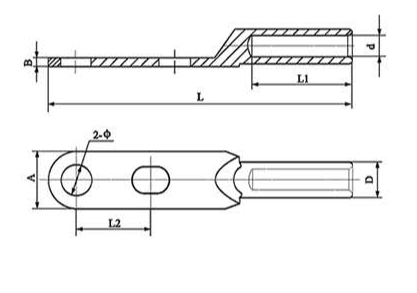

| Item No. | A | B | D | d | L | L1 | L2 | Ø |
| CBL-10S | 16 | 2.5 | 9 | 5.5 | 87 | 30 | 20 | 8.5 |
| CBL-16S | 18 | 2.5 | 10 | 6 | 88 | 31 | 20 | 8.5 |
| CBL-25S | 18 | 2.7 | 11 | 7 | 89 | 34 | 20 | 8.5 |
| CBL-35S | 23 | 3 | 12 | 8.5 | 98 | 36 | 20 | 8.5 |
| CBL-50S | 23 | 3.4 | 14 | 9.6 | 105 | 40 | 20 | 8.5 |
| CBL-70S | 28 | 3.8 | 16 | 12 | 120 | 44 | 25 | 10.5 |
| CBL-95S | 28 | 4.2 | 18 | 13 | 126 | 47 | 25 | 10.5 |
| CBL-120-S | 34 | 4.8 | 20 | 15 | 142 | 50 | 30 | 12.5 |
| CBL-2-150S | 34 | 5.2 | 22 | 16 | 146 | 54 | 30 | 12.5 |
| CBL-185S | 28 | 5.8 | 25 | 18 | 160 | 56 | 35 | 14.5 |
| CBL-240S | 28 | 6.5 | 27 | 20 | 166 | 58 | 35 | 14.5 |
| CBL-300S | 50 | 8.5 | 30 | 23 | 175 | 62 | 40 | 17 |
| CBL-400S | 50 | 9 | 34 | 26 | 186 | 70 | 40 | 17 |
| CBL-500S | 60 | 9.5 | 38 | 29 | 200 | 75 | 40 | 17 |
- High Temperature Resistance
- CBL-S Terminal Round Shape Lug
- Filled by Neutralgrease and Covered by Cap
- Conduct Electricity, Connecting ABC Cablesto Transformers,
- Inner Box+ Carton, According to Different Size
- Material: CU 99. %, AL 99.5%
